TRIUS PRO-25C

£2,175.00 excluding VAT

Out of stock

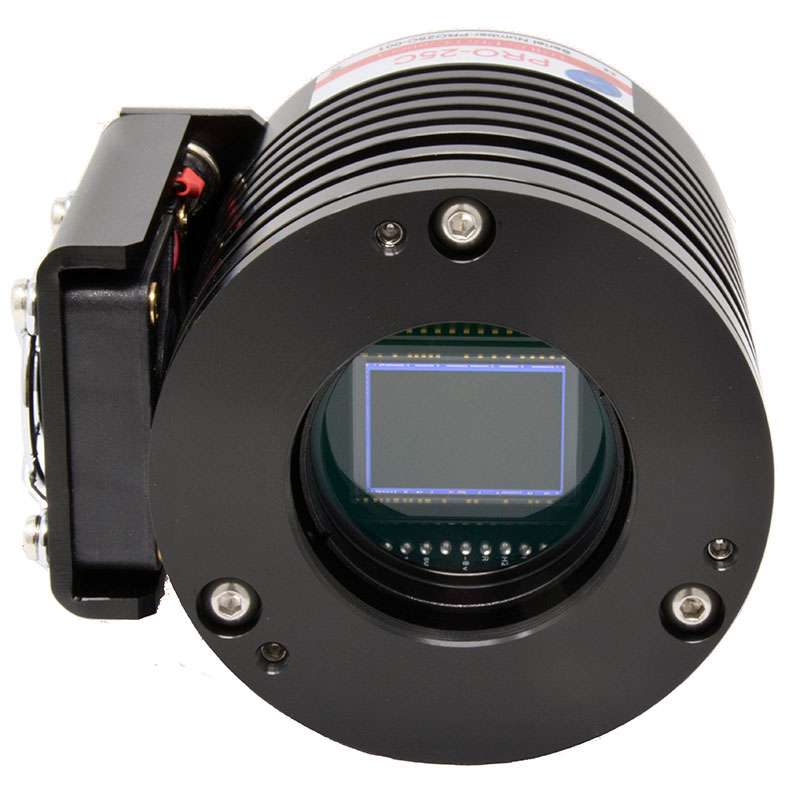

TRIUS PRO-25C USB Hub CCD Camera System (Colour).

Out of stock

SKU: 100-0067 Category:

Description

  • Very large, high resolution ‘SuperHAD’ CCD chip, with 6,000,000 x 7.8uM square pixels in a 23.4 x 15.6mm array. Size equivalent to APS film.
  • Single-shot colour, using a Bayer matrix of R, G and B on-chip filters. No filter wheel required.
  • Triple USB hub for accessories, built-in.
  • High performance two stage cooler for better than -35 C chip temperature reduction.
  • Dry Argon chamber fill for improved cooling performance.
  • Exceptionally low dark signal – No dark frames necessary for most deep sky objects.
  • Exceptionally effective anti-blooming with minimal effect on linearity and no lost active area.
  • High sensitivity, equivalent to 60% QE at peak of green filters.
  • Back focal length 17mm +/-1mm.
  • NEW! Built-in super high speed USB 2.0 interface (USB 1.1 compatible) for approx. 3.5 second downloads.
  • Built-in autoguider output.
  • Single USB cable control for all features – get rid of that dangerous cable tangle!
  • Only ONE computer needed to control all of the devices and functions.
  • Very low power consumption. Less than 1.5 amps at 12v DC.
  • Compact and lightweight – only 75mm in diameter x 100mm long – less than 500 grams load on the ‘scope.





Specification

  • CCD type: Sony ICX453AQ SuperHAD CCD with ultra low dark current, Bayer RGB matrix and vertical anti-blooming.
  • CCD Full resolution Pixel data: Pixel size: 7.8uM x 7.8uM, Image format: 3024 x 2016 pixels
  • CCD Image area: 23.4mm (Horizontal) x 15.6mm (Vertical).
  • CCD quality: Grade 1 or better – No bad columns, no dead pixels, no more than 50 ‘hot’ pixels (saturated in <10 seconds).
  • Spectral Response: QE max at 540nM (~60%), 50% roll-off at 400nM and 650nM.
  • Readout Noise: Less than 12 electrons RMS – typically ONLY 7 electrons!
  • Full-well capacity: Greater than 25,000 e- (unbinned)
  • Anti-blooming: Overload margin greater than 800x.
  • Dark current: Dark frame saturation time greater than 100 hours. Less than 0.02 electrons/second @ + 10C ambient.
  • Data format: 16 bits.
  • System gain:  0.4 electrons per ADU
  • Computer Interface: Built-in USB 2.0 compatible interface. Also works with USB 1.1.
  • Image download time: Typically 3.5 seconds full resolution using USB 2.0, approximately 8 seconds with USB 1.1.
  • Power requirements: 115VAC / 240VAC @ 12VA, or 12VDC @ 1.5 A max.
  • Cooling system: Regulated constant current cooling supply with two stage thermoelectric cooler to give a CCD temperature of approximately -35C below ambient.
  • Size: 75 x 70mm black anodised aluminium barrel with 42mm ‘T2’ thread at the CCD window end & input/output plugs at rear. CCD alignment screws are provided for setting the chip parallel to the focal plane.
  • Weight: approx. 400g.
